C-1080F
Automatic Full Sheet Stripping & Blanking Machine
Features Introduced
This machine is equipped with a high-performance waste removal system featuring dual functions: row stripping and full sheet stripping. It can complete one-pass full waste removal for various box types, window holes, aircraft holes, and front/back stitching waste edges, as long as products fall within the machine’s working size range.
It ensures thorough waste removal without mold changes, delivering high efficiency and easy operation while effectively enhancing users’ production capacity.
? One?pass full stripping and blanking, high efficiency, easy adjustment and operation, greatly enhancing production capacity.
? No mold changes are required for different product sizes. The honeycomb plate frame and positioning pins adapt to various box shapes. Lower pins support the product area while upper pins press the waste area for clean and efficient stripping.
? Customizable upper working panels are available to match customers’ die?cutting layouts.
? Equipped with both row stripping and full?sheet stripping functions, the machine processes a wider range of die?cut products.
? Effectively reduces labor costs, tooling costs and mold costs.
Full Page Products collection
Partial Introduction
Host Part

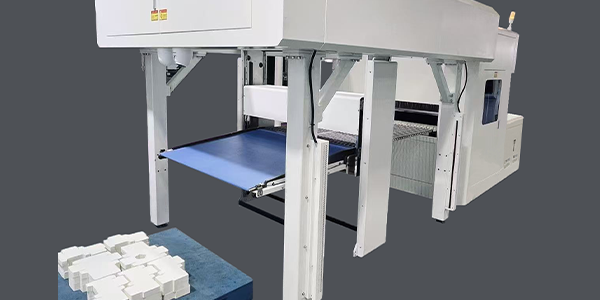

Auto Palletizing Unit

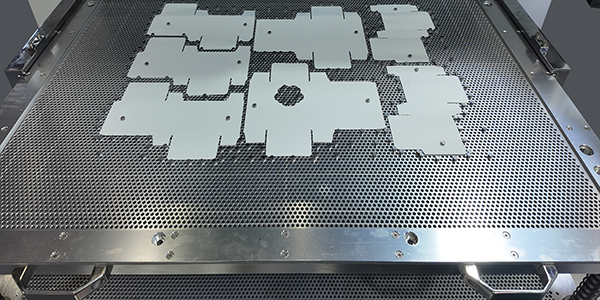

Waste Stripping Die

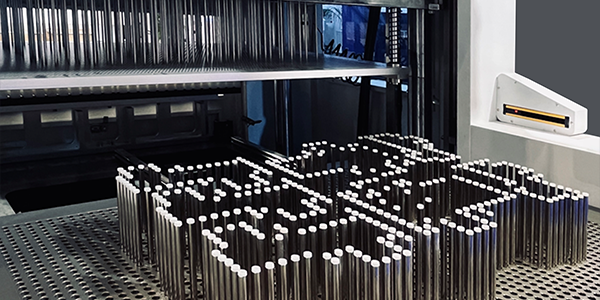

Lower Pins

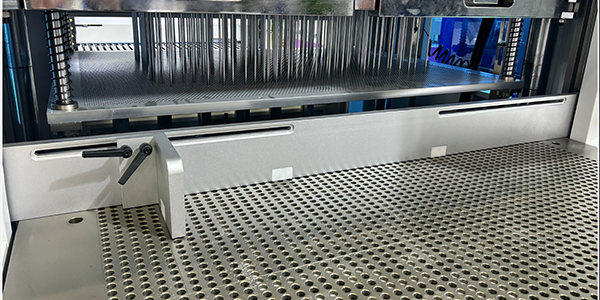

Positioning Gauge

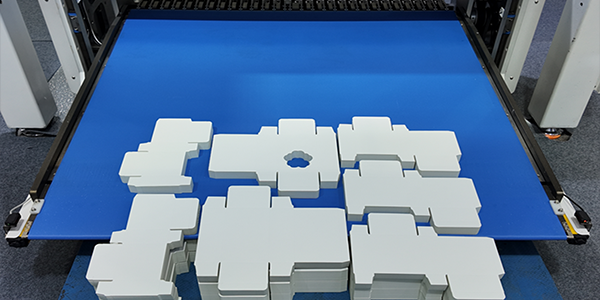

Auto Palletizing

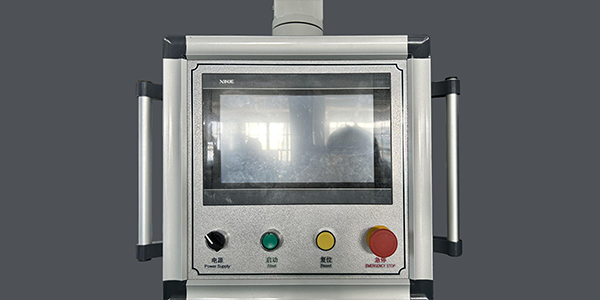

Rotating Touch Screen
Automatic Lifter(Optional)
Main Technical Parameter
| Model | C-1080F |
| Max. Material Stack Size | 1080×780 mm |
| Max. Stack Thickness | 80 mm |
| Max. Product Size | 1060×760 mm |
| Min. Product Size | 100×80 mm |
| Max Pressure | 100 kn |
| Speed | 2-3 times/min |
| Power Supply | 380V-3 phase-50/60HZ |
| Total Power | 11 kw |
| Average Power | 6 kw |
| Working Air Pressure | 0.5-0.6mpa |
| Air Consumption | 45L/min |
| Overall Dimensions | 4950×1880×2050 mm |
| Weight | 4100 kg |
Automatic Lifter Technical Parameters:
| Model | C-SLJ |
| Conveyor belt size | 1550×645 mm |
| Max Material Stack Height | 80 mm |
| Max Pressure | 100 Bar |
| Feeder size | 1550×910×1100 mm |
| Lifter size | 1200×1800×1000 mm |
| Weight | 550 KGS |
| Power | 380V/3 phase/50HZ |
| Total power | 3.7 kw |
