C-950B
Semi-automatic Row Stripping Machine
Features Introduced
As an innovative solution for post-die-cutting processes, this equipment features a full servo system, automatic collection, and non-stop operation. It integrates automatic waste removal, product collection, and scrap discharge into one integrated system. It offers key advantages including easy setup, compact footprint, high output, and low power consumption.
It is ideally suited for hang tags, labels, paper cups, pharmaceutical packaging, cosmetic packaging, and other related products. Through intelligent automation, the system effectively reduces labor costs, improves product quality, and significantly boosts production efficiency.
Row by Row Waste Stripping
Partial Introduction

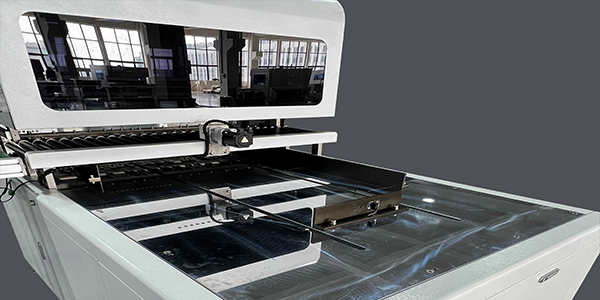

Operation Working Table

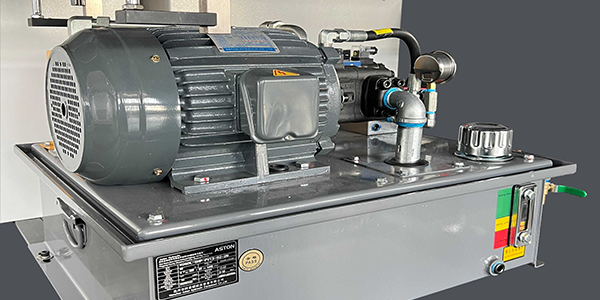

Hydraulic Pump

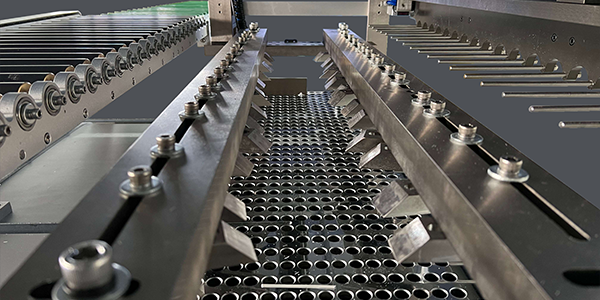

Automatic Product Collection

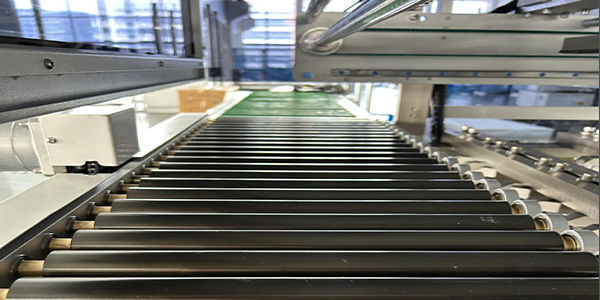

Delivery Roller Conveyor

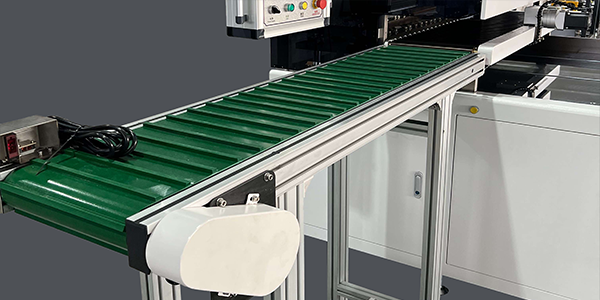

Conveyor Table with Auto Stop Function

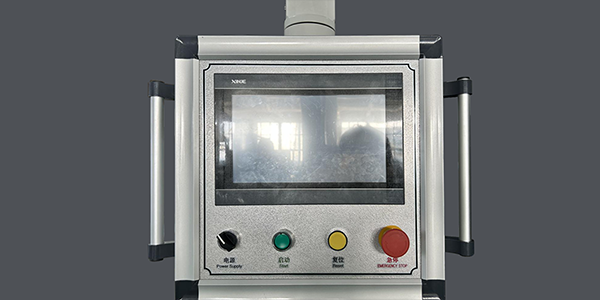

Rotating Touch Screen

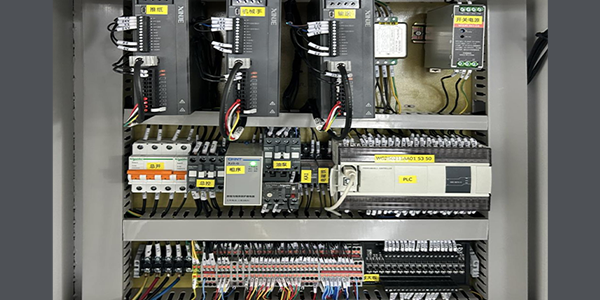

Electrical System
Main Technical Parameter
| Model | C-950B |
| Max. Material Stack Size | 950×950 mm |
| Max. Stack Thickness | 80 mm |
| Min. Stack Thickness | 60 mm |
| Max. Product Size | 930×280 mm |
| Min. Product Size | 90×60 mm |
| Max Pressure | 50kn |
| Speed | 5 times/min |
| Power Supply | 380V-3 phase-50/60HZ |
| Total Power | 6.5 kw |
| Average Power | 3.5kw |
| Working Air Pressure | 0.5-0.6mpa |
| Air Consumption | 13L/min |
| Overall Dimensions | 2820×2030×2100 mm |
| Weight | 2010 kg |
Automatic Lifter Technical Parameters:
| Model | C-SLJ |
| Conveyor belt size | 1550×645 mm |
| Max Material Stack Height | 80 mm |
| Max Pressure | 100 Bar |
| Feeder size | 1550×910×1100 mm |
| Lifter size | 1200×1800×1000 mm |
| Weight | 550 KGS |
| Power | 380V/3 phase/50HZ |
| Total power | 3.7 kw |
